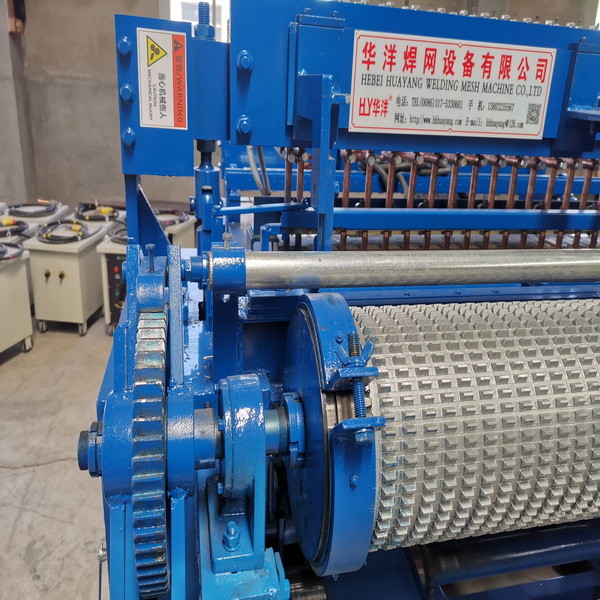

Automatic Galvanized Welded Wire Mesh Machine
1. Product description
Automatic galvanized welded wire mesh machine is used for making wire mesh. The cross wire are fed from wire coil automatically, then through guide rollers and straightener. The mesh pulling is controlled by servo motor, cross wire space can be adjusted by PLC. The two side cutters on the upper beam can be adjusted for side trimming, and make different mesh width. Our automatic electric galvanized roll mesh welding machine has highly improved the work efficiency. And the mesh is welded more level and smooth.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 0.8-1.6 | 90-110 | 100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic galvanized welded wire mesh machine can be used in widely used fencing panels, wire partitions, wire container panels, wire baskets, animal cages, enclosure works, screens, security panels, shelving, signage, stairways/treads, fishing traps and concrete reinforcement.
4. Advantages
a. High speed and high productivity.
b. Inverter with adjustable frequency.
c. This machine is fully automatic to feed wires, weld mesh, cut edge and roll mesh.
d. Server motor solves the problem of one net plate with different mesh size, and the system adopts PLC control.
e. Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.
