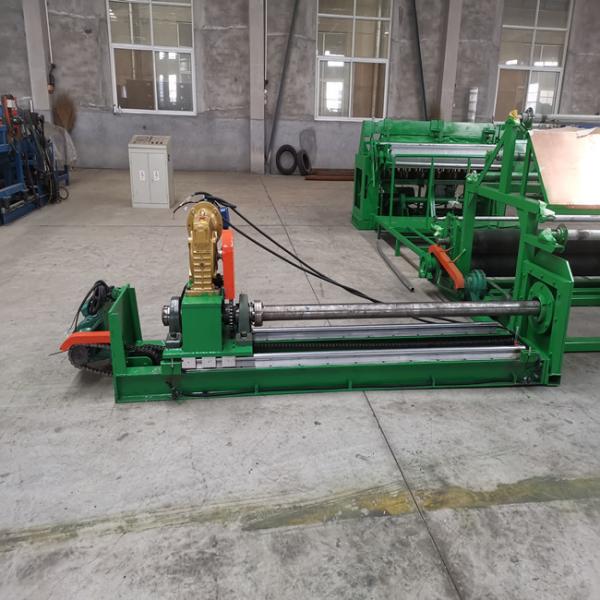

Railway Automatic 0.8mm Fence Mesh Welding Machine Air Cooling

Name: Railway Automatic 08mm Fence Mesh Welding Machine Air Cooling
Brand: Huayang
Price: 1 USD

Brand Name : Huayang

Model Number : R-DHW

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 sets/month

Delivery Time : 30 days

Packaging Details : 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.

Product name : Railway Using Automatic Fence Mesh Welding Machine

Trademark : Huayang

Mesh Size : 1/4′′-2.5′′

Mechanical Specifications : According to Customer Requirement

Wire diameter : Φ0.8-Φ2.5(mm)

Power : 5kw,10kw

Cooling system : Water/Air cooling

Application : Building&Construction

Overall dimension : 3500×1800×1500mm

Welding speed : 80-120times/min

Contact Now

Railway Using Automatic Fence Mesh Welding Machine

1. Product description

Railway Using Automatic Fence Mesh Welding Machine is used for making wire mesh. The main body frame using thick steel plate and steel, that make the main structure is more fastness,and compact. The weft feeding system, the stepper motor automatically droping the weft automatic, it make the placed more accurately.

2. Technical parameter

Model	Mesh width	Minimum mesh size (inch)	Wire diameter(mm)	Welding speed (rows/min)	Roll mesh length (m)	Other available mesh size (inch)
R- DHW	6 feet	1/2x1/2	0.45-0.85	90-120	130	1/2x1, 1x1/2, 1x1, 2x2
R- DHW	6 feet	1/2x1/2	0.6-1.3	90-120	110	1/2x1, 1x1/2, 1x1, 2x2
R- DHW	6 feet	1/2x1/2	0.8-1.6	80-90	100	1/2x1, 1x1/2, 1x1, 2x2
R- DHW	6 feet	1x1	0.45-0.85	90-120	130	1x2, 2x1, 2x2, 2x4
R- DHW	6 feet	1x1	0.6-1.3	90-110	110	1x2, 2x1, 2x2, 2x4
R- DHW	6 feet	1x1	0.8-1.6	90-110	100	1x2, 2x1, 2x2, 2x4
R- DHW	6 feet	1x1	1.4-2.6	80-90	80	1x2, 2x1, 2x2, 2x4

3. Application area

Railway Using Automatic Fence Mesh Welding MachineWire mesh is the most widely used material for fences and cages. It also plays a vital, load-bearing role in oven and barbecue grills, refrigerator shelves and racks, shopping carts and dishwasher baskets. Further, it is used in reinforced mesh to lend stability to concrete.

4. Advantages

a. Both longitude wire and cross wire can be fed from wire coils automatically.

b. The welding head is made of chromium-zirconium copper, with good electrical conductivity, hard material and abrasion resistance.

c. It installs 8-level adjustable welding transformers to suit different wire diameters.
